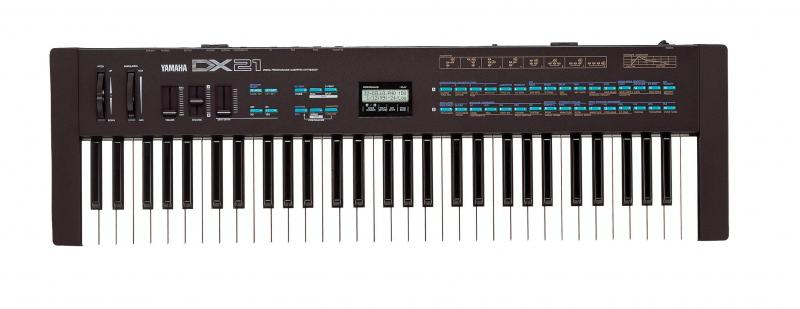

The Ultimate SynthDB | Yamaha DX21

Browse

Description	A consumer level DX synth that sounds just like the DX100/DX27 - thin and brittle. Following the DX model this synth also uses FM synthesis which is difficult to master. You will need to program this synth to get better sounds because the presets are only moderately useful. It's capable of a good string, bass and droney-pad sound as well as industrial sound-effects and metallic like sounds. Still it makes a better option than a DX27 or DX100 because it has the capability of layers and splitting the keyboard and there is a chorus effect. Portamento and a Unison Mono-Mode are also nice features for screaming lead synth performances. For a cheaper source of DX sounds with moderate programmability, check out the DX21.
Brand	Yamaha
Model	DX21
Device	Synth
Type	Keys
Engine Type	Digital
Engine	FM
Voices (max)	8
Multitimbral	1
Oscillators	4
Engine Detailed	16 bit Digital 4 operator FM. 8 algorhythms.
FX	Chorus, Unison, Portamento
Memory	128 patches and 16 performances
Controllers	Breath controller
Keys	61
Key type	Keys
Velocity	N
Aftertouch	N
Midi	I-O-T
Produced:	1985 - 1985

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
