Yamaha | CS20m |
|

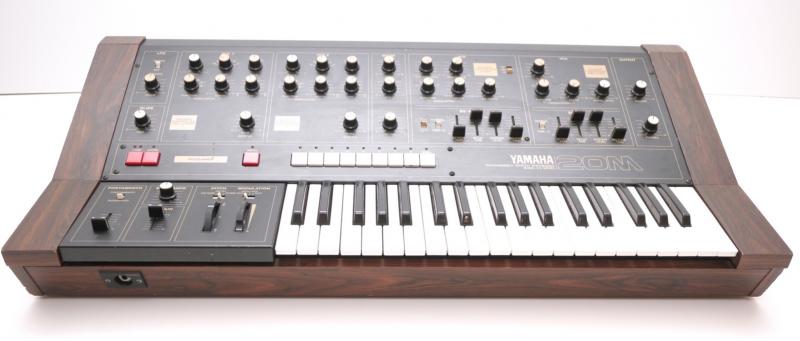

Description | The CS-20m is another of Yamaha's classic CS-series analog synthesizers of the '70's and '80's. It is a monophonic analog synthesizer with dual-VCOs that use subtractive synthesis to create superb bass, synth, lead, bubbly-squirty and percussive sounds. It has all the essential components of a classic synth: There is a resonant filter with switchable high, band or lowpass filtering with its own ADSR envelope controls. There is an ADSR VCA envelope generator which contains a third oscillator which generates a sine wave to modulate and enhance your sounds. And there is an LFO which can modulate the PWM sweep. Fortunately, the CS-20m features 8 memory locations for patch storage of your favorite or most used sounds. Stacked up against the other CS-synths, the CS-20m appears to be a very little brother to the CS-70m (a 12-VCO and very flexible beast). The CS-20m offers more memory patches than any other CS-synth. As for other synths, the CS-20m could be considered Minimoog-like, though it sounds much brighter and thinner than the Mini. If the Minimoog's price is out of your league, the CS-20m is not just a nice alternative but it is quite a classic and solid analog synth! |
| Brand | Yamaha |
| Model | CS20m |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 1 |
| Oscillators | 3 |
| LFO | 1 |
| Engine Detailed | 2 VCO's +1 sine osc. in VCA section |
| Filter (VCF) | 1 filter with low, band or hi pass; ADSR envelope |
| Envelope (VCA) | 1 ADSR; additional sine wave generator |
| Memory | 8 Patches |
| Keys | 37 |
| Key type | Keys |
| Velocity | N |
| Aftertouch | N |
| CV-gate | CV/Gate |
| Produced: | 1979 - 1979 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
