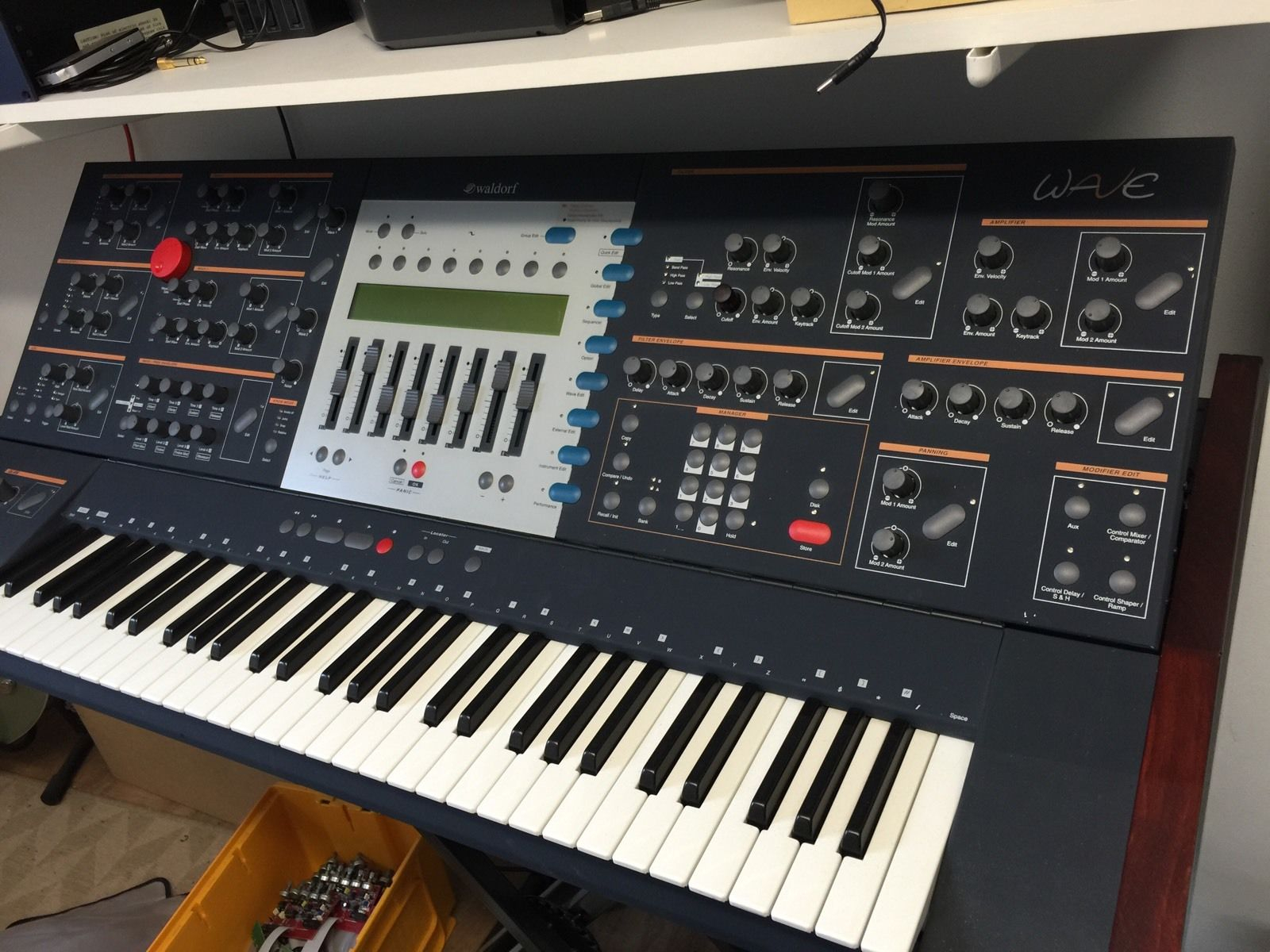

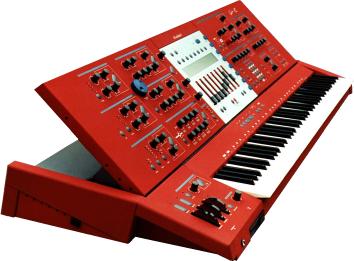

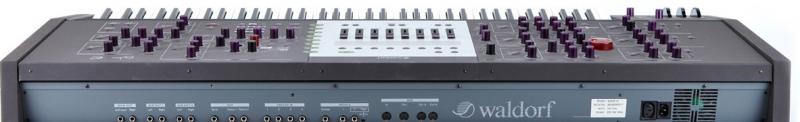

Waldorf | Wave

Description

Waldorf has realized and created one of the biggest and best wavetable synthesizers around. Wavetable synthesis has been widely used in early digital synths like the SCI ProphetVS, Korg Wavestations and the PPG Wave. At first glance the Wave could intimidate most. However for a digital synth, the Wave has a very clear and intuitive design and layout.

This is a digital synth. Samples of waveforms or wavetables are manipulated and combined to create exciting new sounds as well as complex sounds, drones and pads. The filters are analog! There are two, a 24dB low pass and a 12dB high pass. And they've got resonance, distortion and self oscillation. Other unique enhancements to the Wave involve expansion. It comes with 16 voices that can be expanded up to 48 voices. The Wave is also semi-modular with hardware and software expansion options.

The Wave is one of Waldorfs' finest synthesizers and probably one of the most advanced wavetable synths ever. A much smaller rack version of the Wave is the Microwave series. The Wave is a professional instrument with a price tag that probably suites it for the most successful of musicians. Most of us interested in the Wave should consider the Microwave series for access to some of the same great sounds and power found in the Wave.

BrandWaldorf
ModelWave
DeviceSynth
TypeKeys
Engine TypeDigital
EngineWave
Voices (max)16
Multitimbral8
Oscillators2
NoiseY
Engine Detailed2 per voice + noise gen. 16 voices expandable up to 48 voices.
Filter (VCF)Analog 24dB low pass filter, Analog 12dB high pass
Memory256 patches, 256 performances
Keys76
Key typeKeys
VelocityY
AftertouchChannel
MidiI-2O-T
Produced:1993 - 1993
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
