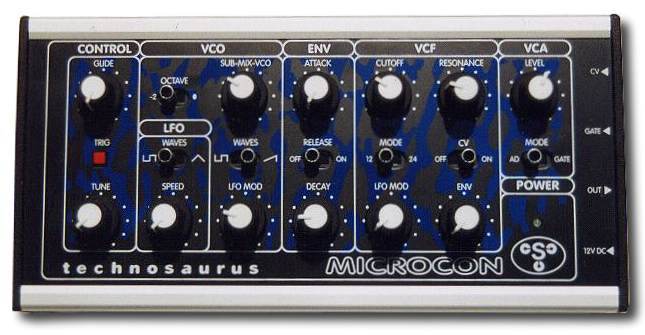

| The Microcon is a modern-day little analog monophonic synthesizer module emulating the simple design and sound of classic Roland TB-303 and SH-101 synths. They are made by Technosaurus, a Swiss company best known for their high-end Selector modular synths. It is handmade using the same discrete circuits found in its bigger brothers.
The Microcon is a totally analog table-top synth module that's slightly smaller than the original TB-303. It has one main oscillator capable of either sawtooth or square waveforms, just like the TB-303. The addition of a sub-oscillator is more like SH-101, which can help beef up your bass sounds. The analog lowpass filter is switchable as either 2-pole (12dB/oct) or 4-pole (24dB/oct), which is better than the TB-303 or SH-101 offered. The LFO can modulate the filter cutoff frequency with either triangle or square wave and the VCO can be modulated by square or triangle waves. Simple attack and decay envelope controls and a Glide effect round out this fairly simple to use and highly affordable 303 clone. The Microcon only uses CV and Gate for being controlled externally.
Main Features:
- VCO with square or sawtooth wave
- LFO square or triangle wave
- SUB-Oscillator,
- AD or ADR-Envelope Generator with manual trig button
- 12 or 24 dB/Octave VCF with Resonance
- VCA with AD or GATE control
- Adjustable GLIDE. CV/GATE inputs (Roland style).
- Filter CV and audio inputs. Internal sound source can be switched off
|
