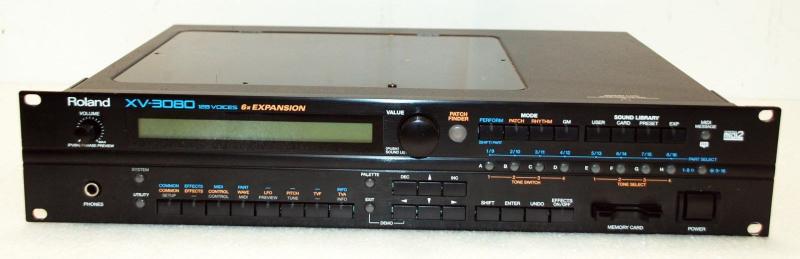

Roland | XV-3080

Description

The XV-3080 is a 128-voice professional synthesizer that picks up where the classic JV-series synthesizers left off. With a massive 128 voices, the XV-3080 is capable of extensive layering and multitimbral applications! There are true stereo waveforms per tone, expressive Matrix Control, expandability via new 64MB SRX (when converted into 16-bit linear format). The sounds include those from the JV-2080 plus many more new sounds and waveforms from the JD-990 and Super JD.

The XV-3080 has plenty of quality built-in digital effects including reverb and effects derived from Roland SRV-3030, V-Studios, and RSS technology. Programming the XV-3080 is in-depth but intuitive and well documented. There's a Patch Finder for quickly finding sounds sorted by type, as found on the JV-2080. Programming the new Matrix Control gives sounds an unprecedented level of nuance! It is apparent that Roland has packed the most professional features from their hottest synthesizers into a new and improved workhorse module - their "most expressive instrument ever"!

The XV-3080 is almost identical to the XV-5080. The XV-3080 does not have the ability to read and playback Akai or S-700 sample libraries. The 3080 does not have digital output. It also lacks the COSM effects processor. The XV-3080 only has a 2-line LCD display screen whereas the XV-5080 has a giant JV-2080 style LCD display. Minus these few limitations, the XV-3080 is still an immensely powerful pro-quality sound module.

BrandRoland
ModelXV-3080
DeviceSynth
TypeRack
Engine TypeDigital
EnginePCM
Voices (max)128
Multitimbral16
Oscillators4
Engine Detailed64MB of internal wave memory gives 1083 waveforms (including all JV-2080 sounds and waveforms and 112 waveforms from the JD-990). Expandable with SR-JV80-Series wave expansion boards and XP/JV-Series Patches, 4 slots.
FXStudio-quality reverb and effects derived from Roland SRV-3030, V-Studios, and RSS technology
MemoryPatches: 1152; Performances: 96
Keys0
Key typeN/A
VelocityN/A
AftertouchN/A

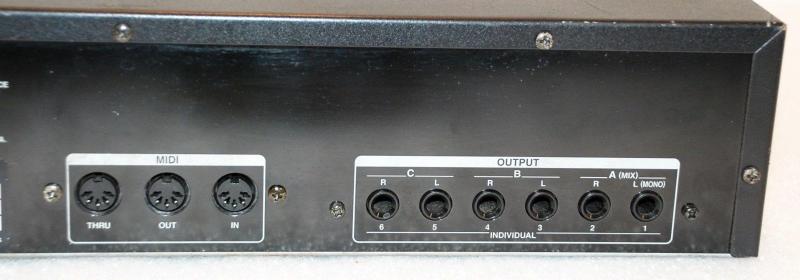

MidiI-O-T
Produced:2000 - 2000
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
