Roland | JX-8P |
|

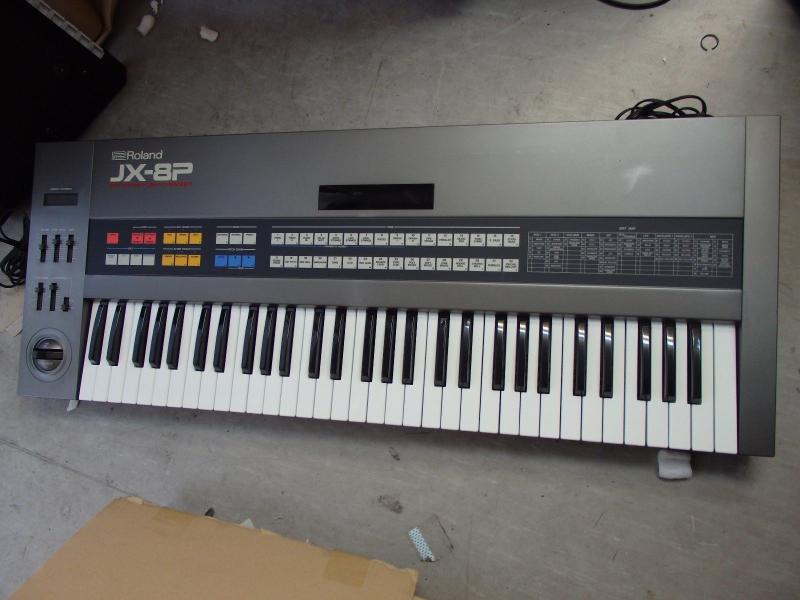

Description | The JX-8P is a decent analog polysynth. It has 6 voices of polyphony, great MIDI implementation and patch storage as well as an external memory cartridge slot. Though it is far more advanced than its predecessor, the JX-3P, the JX-8P has its drawbacks. Hands-on programming is sacrificed and reduced to assigning the parameter you want to tweak to a data-slider near the pitch/mod bender. Enter the PG-800 controller which gives you total control of all the JX-8P's editable parameters with hands-on traditional slider control. Membrane buttons dominate the front panel of the JX-8P providing access to the various preset and user patches and to page through and assign editable parameters. Professional features can still be found under the hood of the JX-8P. Its 61 note keyboard is velocity and aftertouch sensitive. Just like the Juno synthesizers it uses DCO's for a very stable system, however its sounds are a little thin and bright. It also features portamento, unsion and solo (monosynth) performance modes. |
| Brand | Roland |
| Model | JX-8P |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | DCO |
| Voices (max) | 6 |
| Multitimbral | 1 |
| Oscillators | 2 |
| Engine Detailed | 2 DCO's per voice (12 oscillators) |
| Filter (VCF) | Resonant lowpass & non-resonant highpass |
| Envelope (VCA) | ADSR |
| FX | Chorus, Portamento, chase-play |
| Memory | 64 patches + External memory cartridges |
| Keys | 61 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | Channel |
| Midi | I-O-T |
| Extra info | Programmable via PG-800 |
| Produced: | 1985 - 1985 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
