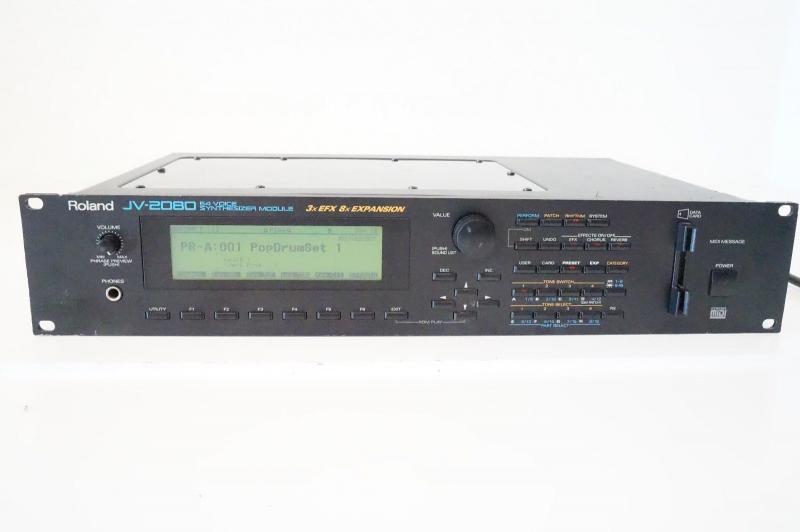

Description | As successor to the JV-1080, this synthesizer sound module offers even greater performance and higher-quality sounds. Three different effects systems are provided: "Multi-effect (EFX)," which offers a total of 40 effect types (such as equalizer, rotary, and distortion); and "Reverb" and "Chorus." In a Performance (which allows up to 16 Parts to be used simultaneously), three different EFX plus chorus and reverb can be used simultaneously, for a total of 5 effect units, allowing highly-sophisticated musical expression.
The big screen can show a large amount of information at once, and can also display information graphically so that settings can be made visually. The [Fl]—[F6] buttons located below the screen change their function in accord with the current display page. This allows intuitive operation with a less-cluttered operating panel. A "Patch Search function" is provided to help you navigate through the vast number of Patches to find the desired one. A "Patch Preview function" lets you use a phrase to audition a Patch without requiring any other equipment. Up to eight wave expansion boards (SR-JV80 series: optionally available) can be installed to add a maximum of approximately 2,000 Patches. Patches are compatible not only with the JV-1080, but also with the XP-50/80. The JV-2080 can correctly play back musical data that was created using the JV-1080 or XP-50/80. |
| Brand | Roland |
| Model | JV-2080 |
| Device | Synth |
| Type | Rack |
| Engine Type | Digital |
| Engine | Sample, LA |
| Voices (max) | 64 |
| Multitimbral | 16 |
| LFO | 2 LFO's (sine, saw, square, triangle, trapezoid, sample&hold, random and chaos) w/ key or external sync. Can modulate the pitch, filter, pan, or level |
| Engine Detailed | 8MB of sample ROM and acoustic simulation. Expandable with SR-JV80 expansion boards |
| Filter (VCF) | TVF (lowpass, bandpass, highpass, peak) with cutoff, resonance, key follow and velocity sensitivity |
| Envelope (VCA) | TVA ADSR (tone level, pan, key follow) |
| FX | Eight Reverbs, One Chorus, 40 EFX Multi-Effects |
| Memory | 128 user, 640 presets, 2 user rhythm kits, 10 preset rhythm kits, 32 user performances, 64 preset performances and 8 expansion board slots |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| Midi | I-O-T |
|
Produced: | 1997 - 1997 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
