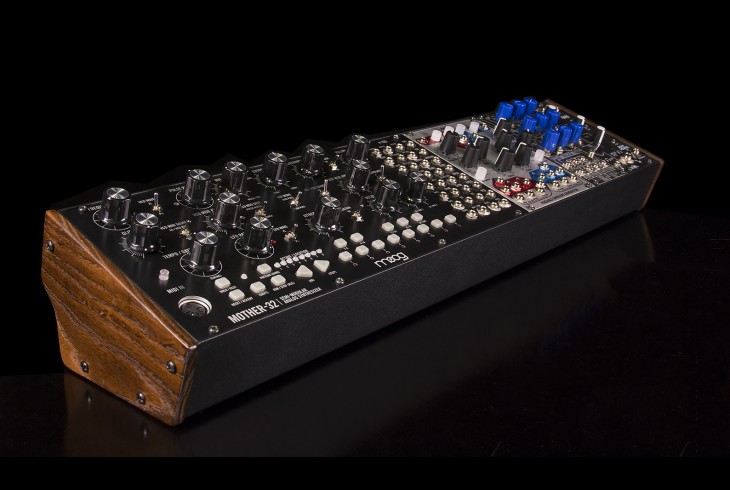

Description | The Moog Mother-32 is the first tabletop semi-modular synthesizer from Moog. It is a distinctive analog instrument that adds raw analog sound, sequencing and extensive interconnectivity to any electronic or modular ecosystem. This expansive new live performance and production instrument is handcrafted in Asheville, NC and has been meticulously designed to provide musicians with a diverse array of creative tools to inspire new music, unique sound and endless sonic exploration.
Mother-32 comes secured in a rugged extruded aluminum enclosure with wood sides and features a voltage controlled 32-step sequencer with 64 sequence locations, definitive Moog low pass and high pass Ladder Filter, 2 voltage controlled mixers, a classic Moog oscillator with dual outputs, wide-range LFO with audio-rate modulation capability, MIDI input and MIDI to CV conversion, white noise, a modular patchbay with 32 patch-points for extended synthesis complexity and an assignable CV jack with 16 assignable sources.
|
| Brand | Moog |
| Model | Mother-32 |
| Device | Synth |
| Type | Desktop |
| Engine Type | Analog |
| Engine | Modular (Semi) |
| Voices (max) | 1 |
| Oscillators | 1 |
| LFO | 1, Square, Triangle |
| Noise | Y |
| Engine Detailed | 1 VCO, Pulse Variable, Saw Down, Saw Up |
| Filter (VCF) | 1 Low Pass & High Pass Moog Ladder Filter (20Hz–20kHz) with voltage controlled resonance |
| Sequencer | 32 step, 64 patterns |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| CV-gate | CV/GATE |
|
Produced: | 2015 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
