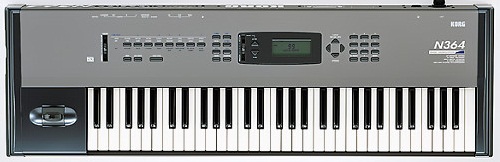

Description | The 61 key N364 was released in 1996 and revamped the AI2 synthesis line with an increased 64 voice polyphony, 8 megabytes of wave rom, 536 programs and 400 combinations.
The N364 also offered an arpeggiator and is also the first Korg synthesizer to introduce their now long running Real Time Pattern Play Record (RPPR) now a standard feature in their keyboard sequencers.
The unit had an onboard floppy drive, and is General MIDI SMF compatible and features korg's standard the X/Y joystick for real time modulation.
The 32,000 event sequencer offered 16 MIDI tracks and 10 songs with added ability of storing up to 100 patterns in memory as well 999 measures per song. |
| Brand | Korg |
| Model | N364 |
| Device | Synth |
| Type | Keys |
| Engine Type | Digital |
| Engine | PCM, WT |
| Voices (max) | 64 |
| Multitimbral | 16 |
| Oscillators | 2 |
| LFO | 2 |
| Engine Detailed | PCM, Wavetable AI2 |
| Filter (VCF) | 1 24dB Slope (4-pole), Band Pass, High Pass, Low Pass |
| Envelope (VCA) | 2 ADSR |
| FX | 2 multi-effects processors, 47 effects |
| Memory | 536 programs and 400 combinations. |
| Arpeggiator | up/down/alt1/alt2/random |
| Recording | 32,000 event MIDI sequencer, 16 tracks, 10 songs, 100 user patterns, 999 measures per song |
| Keys | 76 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | Channel |
| Audio | 2 Stereo out |
| Midi | I-O-T |
|
Produced: | 1996 - 1997 |
| Legend: |
Obvious |
Y: Yes, N: No, N/A: Not Applicable |
| VCO |
Voltage Controlled Oscillator |
DCO |
Digital Controlled Oscillator |
| LFO |
Low Frequency Oscillator |
Sub |
Sub Oscillator |
| VCF |
Voltage Controlled Filter |
VCA |
Voltage Controlled Amplifier |
| Velocity |
As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. |
Aftertouch |
Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. |
