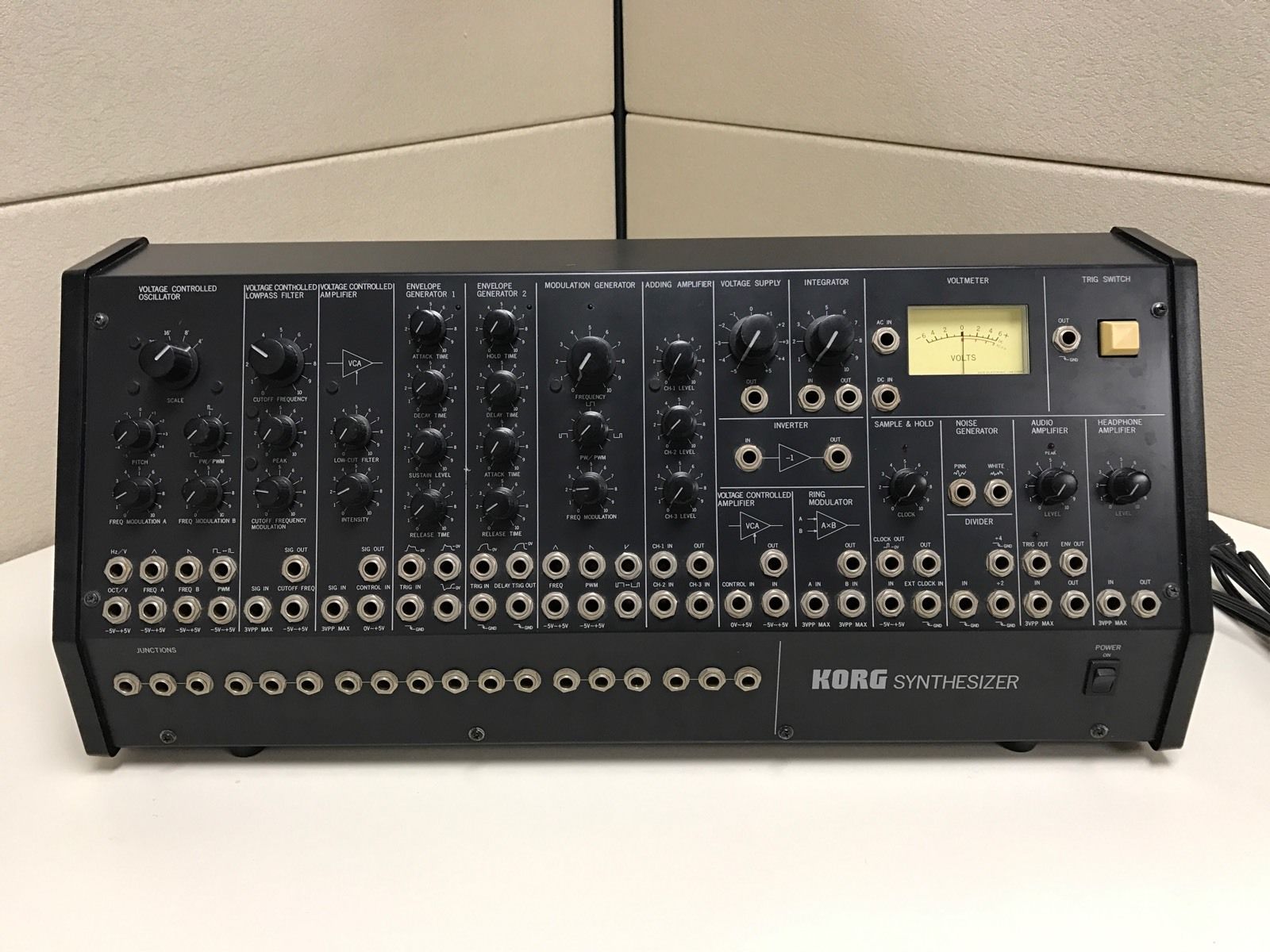

Korg | MS-50 |
|
Description | The Korg MS-50 - modular in design and at the height of the MS-series synthesizers. This keyboard-less expander type module is completely patchable and uses Korg's Hz/V type of CV and Gate for control with other synths like the MS-20. There are lots of knobs and patch points on this one... The MS-50 is still a single VCO monophonic analog beast but offered more patchability and power than any other MS synth. Other features include a ring modulator, voltmeter and sample & hold. It was also designed to complement the SQ-10 sequencer. |
| Brand | Korg |
| Model | MS-50 |
| Device | Synth |
| Type | Desktop |
| Engine Type | Modular (Semi) |
| Engine | VCO |
| Voices (max) | 1 |
| Oscillators | 1 |
| LFO | 1 LFO |
| Noise | Y |
| Engine Detailed | 1 VCO |
| Filter (VCF) | 2 VCFs (highpass/lowpass) |
| Envelope (VCA) | 2 ADSR envelope gens |
| Keys | 0 |
| Key type | N/A |
| Velocity | N/A |
| Aftertouch | N/A |
| CV-gate | CV/Gate |
| Extra info | Also designed to complement the SQ-10 sequencer. |
| Produced: | 1978 - 1978 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
