Ensoniq | VFX |
|

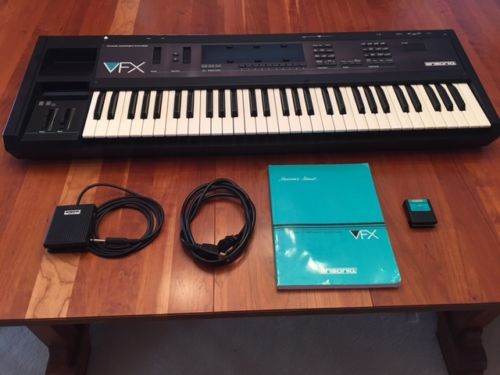

Description | Following up on the heels of the ESQ-1 and SQ-80 synths from Ensoniq comes the VFX with more polyphony and waveforms. The VFX allows for PPG-like synthesis using a sort of wavetable synthesis. This puts it into a unique class of digital synthesizers along with the PPG Wave series, Waldorf Microwave series, and Ensoniq SD-1, SQ-80, ESQ-1, and Fizmo. The VFX has 21 voices of polyphony. A single patch can contain up to 6 of 109 waves in its ROM memory that can be combined and layered. Advanced and analog-like synth parameters including its dual multi-mode digital filters, three 11-stage envelopes, LFO, and 15 modulation sources allow you to further shape and morph your sounds. There's even a built-in 24-bit VLSI dual effects processor with reverb, chorus, flanging, and delay. The VFX has a standard 61-note keyboard with velocity and polyphonic aftertouch. The synth also has full MIDI implementation with 12 channels for multitimbral functions. The VFX has a cartridge port as well, for storing sounds onto Ensoniq's proprietary media. The VFX is a digital synth, and its filter is pretty weak but the VFX makes some sweet strings and textural sounds but it won't be very handy for any "meaty drum and bass sounds. |
| Brand | Ensoniq |
| Model | VFX |
| Device | Synth |
| Type | Keys |
| Engine Type | Digital |
| Engine | Wave |
| Voices (max) | 21 |
| Multitimbral | 12 |
| Oscillators | 6 |
| LFO | 1 per voice |
| Engine Detailed | 1 to 6 per voice. Wavetable has 109 waveforms (multi-sampled acoustic instruments, sustained waveforms, harmonic and inharmonic structures) |
| Filter (VCF) | Dual multi-mode digital filters; High- and Low-Pass with 12 or 24 dB/Oct. Band-pass filter with 12 dB/Oct. |
| Envelope (VCA) | 3 11-stage envelopes |
| FX | 24-bit Dual VLSI Multi-Effects: reverb, chorus, flanging, and delay |
| Memory | 120 patches, 12 performances |
| Keys | 61 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | Poly |
| Midi | I-O-T |
| Produced: | 1989 - 1989 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
