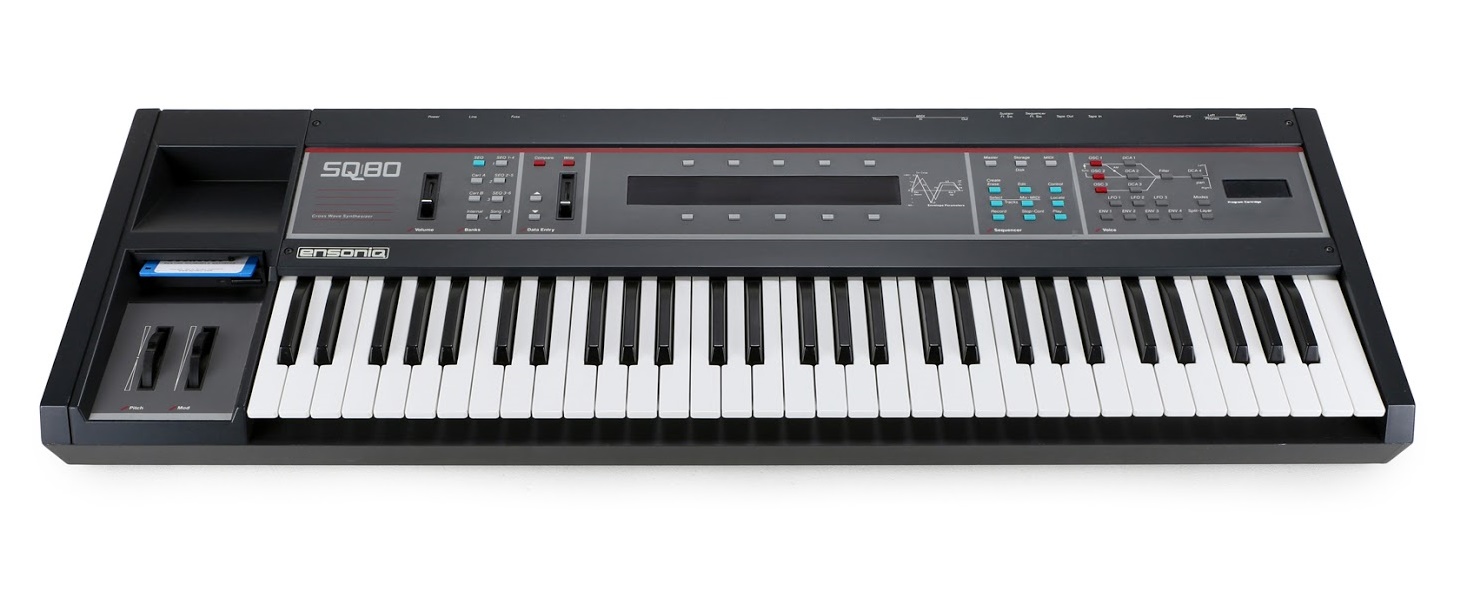

Ensoniq | SQ-80

Description

The SQ-80 is basically a reved-up ESQ-1 with a total of 75 waveforms, a 61-note keyboard with velocity & aftertouch, floppy disk drive for storing patches and sequences, and an enhanced sequencer. Great for organs, analog-type sounds, pads and sound effects. Like the classic ESQ-1, the SQ-80 functions in providing analog-type 4-pole lowpass filtering and editing of digital waveforms. Each voice can combine up to 3 of the 75 waveforms. These waveforms include multi-sampled transient attack waves such as violin bow, plectrum picks, mallet, hammer, breath attacks and percussive sounds. There are also 5 sampled drum sets. Three LFOs are onboard for some pretty wild modulation of the sounds you create or edit. Complete MIDI implementation makes the SQ-80 great for any studio or live use too.

As for playing the SQ-80, it is a dream! Its 61-note keyboard is full, responsive and has polyphonic aftertouch. Polyphonic aftertouch simply means that each key pressed will respond to aftertouch independently of the other keys. The aftertouch can be used to control a variety of modulation parameters such as the LFO. Pitch and mod wheels and plenty of front-panel buttons and a few sliders make accessing and editing fairly easy and hands-on. The keyboard can be split or layered. The pattern-based 8-track multitimbral sequencer is great for creating short to complex sequences live, or in step time with quantization, bounce-able tracks, 60 sequence patterns and 20 songs. And they can be saved to disk along with any patches you've created and any SysEx Midi data. Unfortunately, the SQ-80 has no built-in effects. The SQ-80 is certainly a classic analog/digital hybrid of the late eighties which still holds up well today.

BrandEnsoniq
ModelSQ-80
DeviceSynth
TypeKeys
Engine TypeDigital
EngineWave
Voices (max)8
Multitimbral8
Oscillators3
LFOUp to 3 per voice - can route to pitch, amp, filter, pan
Engine DetailedEach voice can combine up to 3 of the 75 waveforms.
Filter (VCF)1 4-pole analog filter per voice w/sweepable resonance
Envelope (VCA)1 digital amp per oscillator + 1 global amp per voice
Memory40 patches onboard + 80 with EEPROM cartridge, floppy drive
Recording8-Track, 60 patterns, 20 songs, 20,000 note capacity
Controllersswitch pedal, CV pedal
Keys61
Key typeKeys
VelocityY
AftertouchPoly
MidiI-O-T
Produced:1988 - 1989
Legend: Obvious Y: Yes, N: No, N/A: Not Applicable
VCO Voltage Controlled Oscillator DCO Digital Controlled Oscillator
LFO Low Frequency Oscillator Sub Sub Oscillator
VCF Voltage Controlled Filter VCA Voltage Controlled Amplifier
Velocity As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. Aftertouch Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
