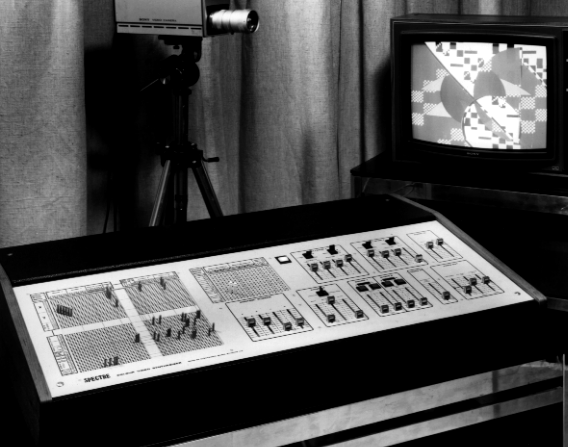

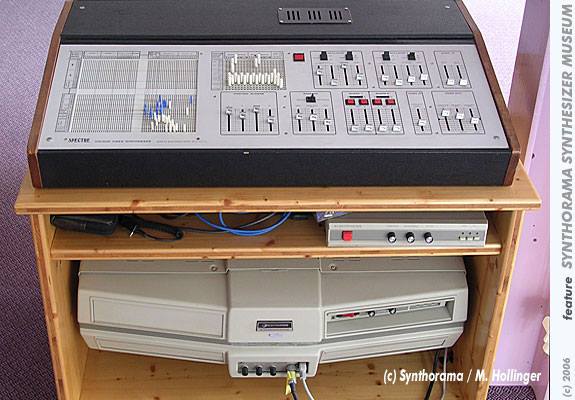

Description	The Spectron originally released as the Spectre from EMS was an "Innovative Video Synthesiser" using analogue and digital techniques. The prototype was used to provide a projected lightshow for an early Tangerine Dream concert at the London Rainbow. Only 15 were built. The Spectron is a hybrid video synthesiser which uses the EMS patchboard system to allow completely flexible connections between module inputs and outputs. The video signals were digital, but they were controlled by analog voltages. There was a digital patch board for image composition and an analog patchboard for motion control. It was designed with the same concepts and approach used for audio synthesizers.
Brand	Electronic Music Studios (EMS)
Model	Spectron (Spectre)
Device	Synth
Type	Desktop
Engine Type	Analog
Engine	VCO
Voices (max)	1
Oscillators	2
LFO	1
Engine Detailed	2 VCO
FX	Delay
Keys	0
Key type	N/A
Velocity	N/A
Aftertouch	N/A
CV-gate	CV I-O
Produced:	1974 - 1974

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
