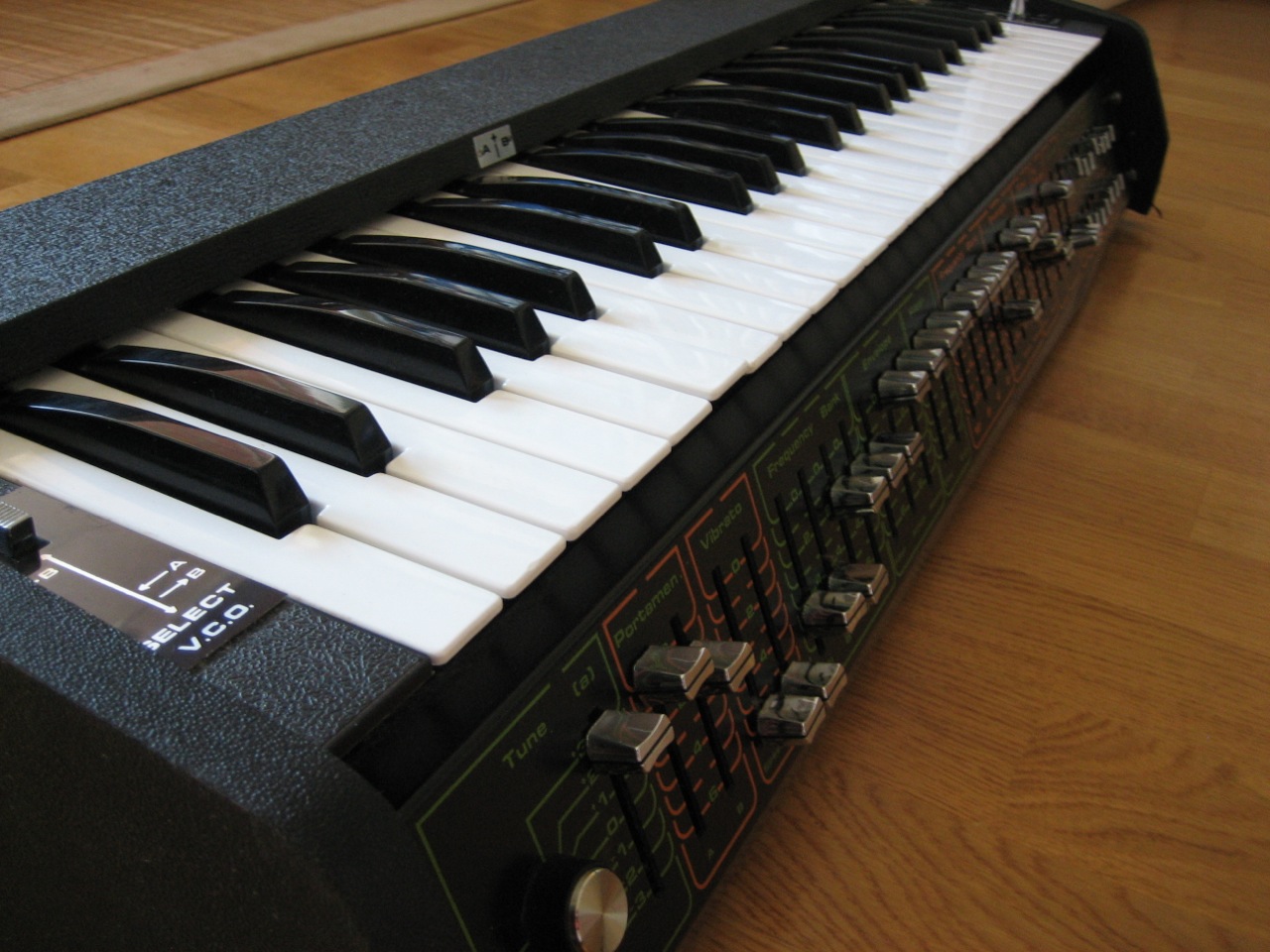

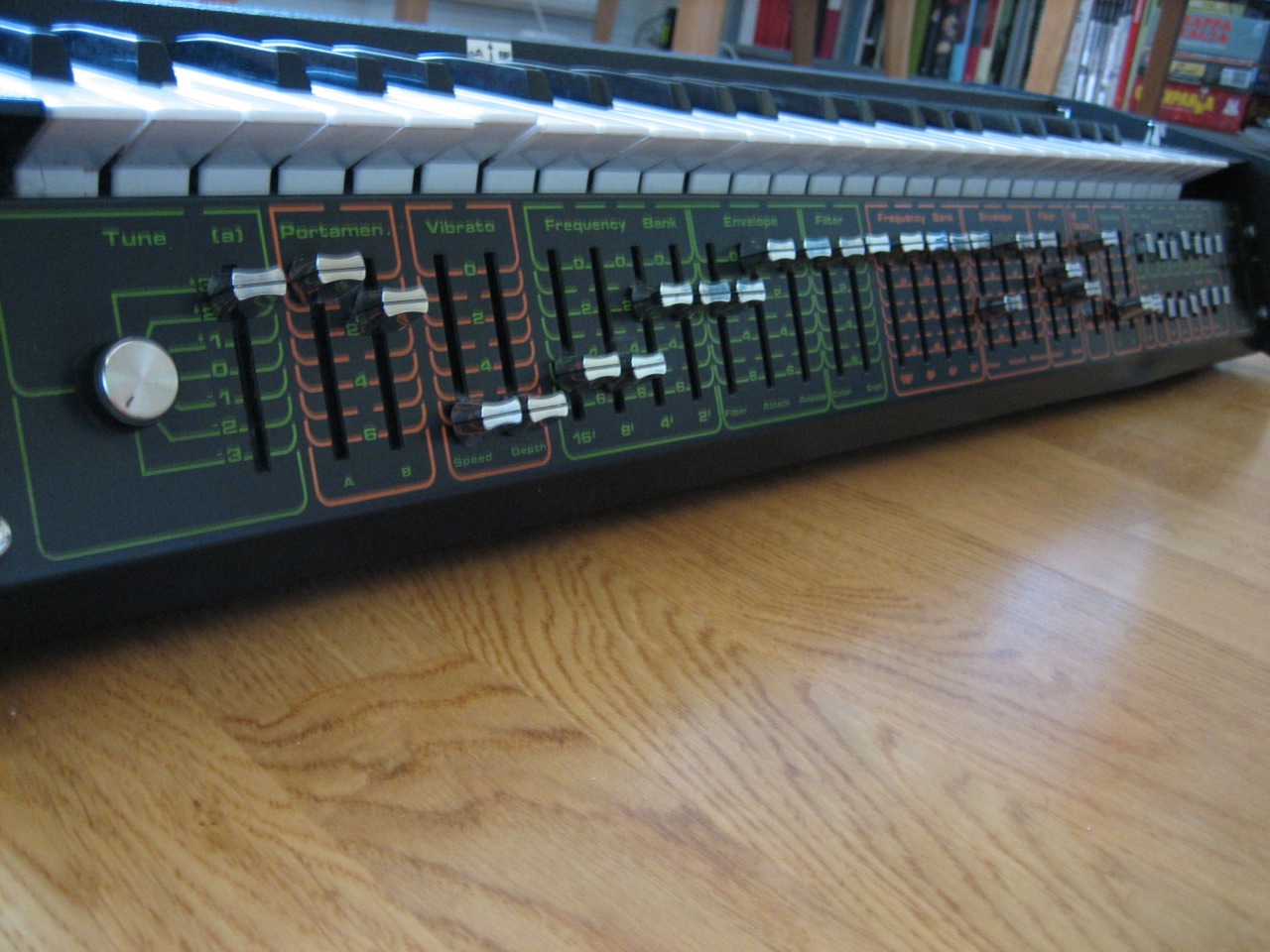

Description	The Crumar Compac Synth is an analog synthesizer released in 1976. It follows a line of of products that Crumar manufactured like the Compac Piano and Compac Sting instruments of the era. The Compac Synth is unique in that it features two separate voices that can be played simultaneously or split in two zones on the keyboard. Each voice has it's own oscillator, filter and AR envelope as well as separate outputs. Additionally the Compac Synth's voices have separate control sections for it's oscillator waveforms, filter, envelope, and octave settings. The control sections include sliders and buttons for adjusting the timbres. The output section includes two separate outputs which allow voices A and B to be output together or individually with output A sent to the additional output. The unit features a separate master tune knob and a slider tune knob for oscillator B tuning. Both oscillators have separate sliders for adjusting portamento.
Brand	Crumar
Model	Compac-Synth
Device	Synth
Type	Keys
Engine Type	Analog
Engine	VCO
Voices (max)	2
Oscillators	1
Noise	Y
Engine Detailed	1 VCO, Pulse, Saw Up, Square, White Noise
Filter (VCF)	Resonance
Envelope (VCA)	AR
Keys	49
Key type	Keys
Velocity	N
Aftertouch	N
Audio	2x Mono out
Produced:	1976 - 1976

Legend:		Obvious	Y: Yes, N: No, N/A: Not Applicable
VCO	Voltage Controlled Oscillator	DCO	Digital Controlled Oscillator
LFO	Low Frequency Oscillator	Sub	Sub Oscillator
VCF	Voltage Controlled Filter	VCA	Voltage Controlled Amplifier
Velocity	As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key.	Aftertouch	Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel.
Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise.
