Akai | VX600 |
|

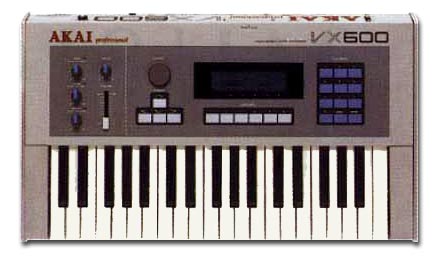

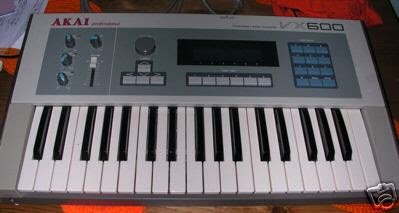

Description | The VX600 is a compact analog synthesizer produced by Akai. It's a six-voice synth with two analog VCOs per voice. This will give you some pretty thick and rich analog bass, pads, strings and so on. A very flexible Modulation Matrix allows you to route waveforms from each of the VCOs through the various edit functions. There is a lowpass resonant filter, a highpass filter, two LFOs, three envelope generators, two external sound inputs and more. The VX600's patch memory stores over 100 patches, each of which can contain key group splits, MIDI info and voice allocation. Add classic analog performance modes such as unison, stacked mono and a new six-part multitimbral mode and you've got yourself some thick and full analog sounds! Its MIDI implementation allows for seamless integration into any MIDI studio. Additionally, a dedicated connector jack allows direct connection to the EVI1000 and EWI1000 wind synthesizers and a 13-pin DIN connector gives six individual voice outputs. Quite a powerful little beast! The keyboard is a 37 key bed with velocity and aftertouch capability. It also allows for up to 6 timbres to be played simultaneously including separate settings for tune, transpose, volume, and other functions. Additionally the Akai VX600 has a Chord Play Mode which allows you play and assign up to 20 Preset Chord patterns on the keyboard. The Chord patterns can also be edited and rewritten as user sets. |
| Brand | Akai |
| Model | VX600 |
| Device | Synth |
| Type | Keys |
| Engine Type | Analog |
| Engine | VCO |
| Voices (max) | 6 |
| Multitimbral | 6 |
| Oscillators | 2 |
| LFO | 2 LFOs per voice (various waveforms, speed, delay, depth) |
| Engine Detailed | 12 osc. (2 per voice) |
| Filter (VCF) | Lowpass / Highpass filter w/ cutoff, resonance, pitch follow |
| Envelope (VCA) | FM: depth, destination & vca: level |
| Memory | 50 sound library patches, 20 code memories, 40 programs, 10 packets + external memory cards available |
| Keys | 37 |
| Key type | Keys |
| Velocity | Y |
| Aftertouch | Channel |
| Midi | I-O |
| Extra info | A dedicated connector jack allows direct connection to the EVI1000 and EWI1000 wind synthesizers and a 13-pin DIN connector gives six individual voice outputs. |
| Produced: | 1988 - 1988 |
| Legend: | Obvious | Y: Yes, N: No, N/A: Not Applicable | |
| VCO | Voltage Controlled Oscillator | DCO | Digital Controlled Oscillator |
| LFO | Low Frequency Oscillator | Sub | Sub Oscillator |
| VCF | Voltage Controlled Filter | VCA | Voltage Controlled Amplifier |
| Velocity | As with a piano, the harder you hit a key, the louder the sound, unlike most organs which always produce the same loudness no matter how hard you hit a key. | Aftertouch | Pressing a key after you activated it. Channel Aftertouch, no matter which key, it will send a Channel message. Poly Aftertouch, sends the pressure per key instead of the whole channel. |
| Values for OSC, LFO, Filter, Envelope are per voice unless stated otherwise. | |||
